UHMWPE BAR

UHMW BAR
  • UHMW BAR
  • UHMWPE BAR
  • UHMWPE BAR
Model No.︰-
Brand Name︰-
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 20 Related Items
Prev1516171819Next

Product Description
Application

1.Engineering manufacture:gear wheel, bearing bushes, sliding elements, chute liners, bunker liners, chain wear strip, guide strips and liners.
2.The paper industry:suction box covers and guiding strips.
3.The textile industry:lug straps, picker sticks, loom pickers, picker shields and spinning and mooring rope etc.
4.The food handling equipment:cutting boards, kitchen work tops and wear parts.
5.Machine construction: spray nozzles, agitator screws, acid pump impellers and valve liners.
6.Mining
Specifications︰Diameter mm Roundnessless mm Length mm
15 ≤1 ±0.5 1000
20 ≤1 ±0.5 1000
25 ≤1 ±0.5 1000
30 ≤1 ±0.5 1000
40 ≤1 ±0.5 1000
45 ≤1 ±0.5 1000
50 ≤1 ±0.5 1000
60 ≤1 ±0.5 1000
65 ≤1 ±0.5 1000
70 ≤1 ±0.5 1000
80 ≤1 ±0.5 1000
90 ≤1 ±0.5 1000
100 ≤3 ±1.5 1000
110 ≤3 ±1.5 1000
120 ≤3 ±1.5 1000
140 ≤3 ±1.5 1000
160 ≤6 ±3 1000
180 ≤6 ±3 1000
200 ≤6 ±3 1000
250 ≤6 ±3 200
300 ≤6 ±3 200
380 ≤6 ±3 200
400 ≤6 ±3 200
500 ≤6 ±3 200 1000~2000 ≤6 ±3 200

Main technical specification

Item unit value
Tensile strength Mpa ≥ 24
Break elongation % 140

Advantages︰Feature

Very high abrasion resistance
Very high impact strength
Very low coefficient friction
Good self-lubricant property
Excellent resistance to chemicals
Good resistance to low temperature
Excellent dielectric properties

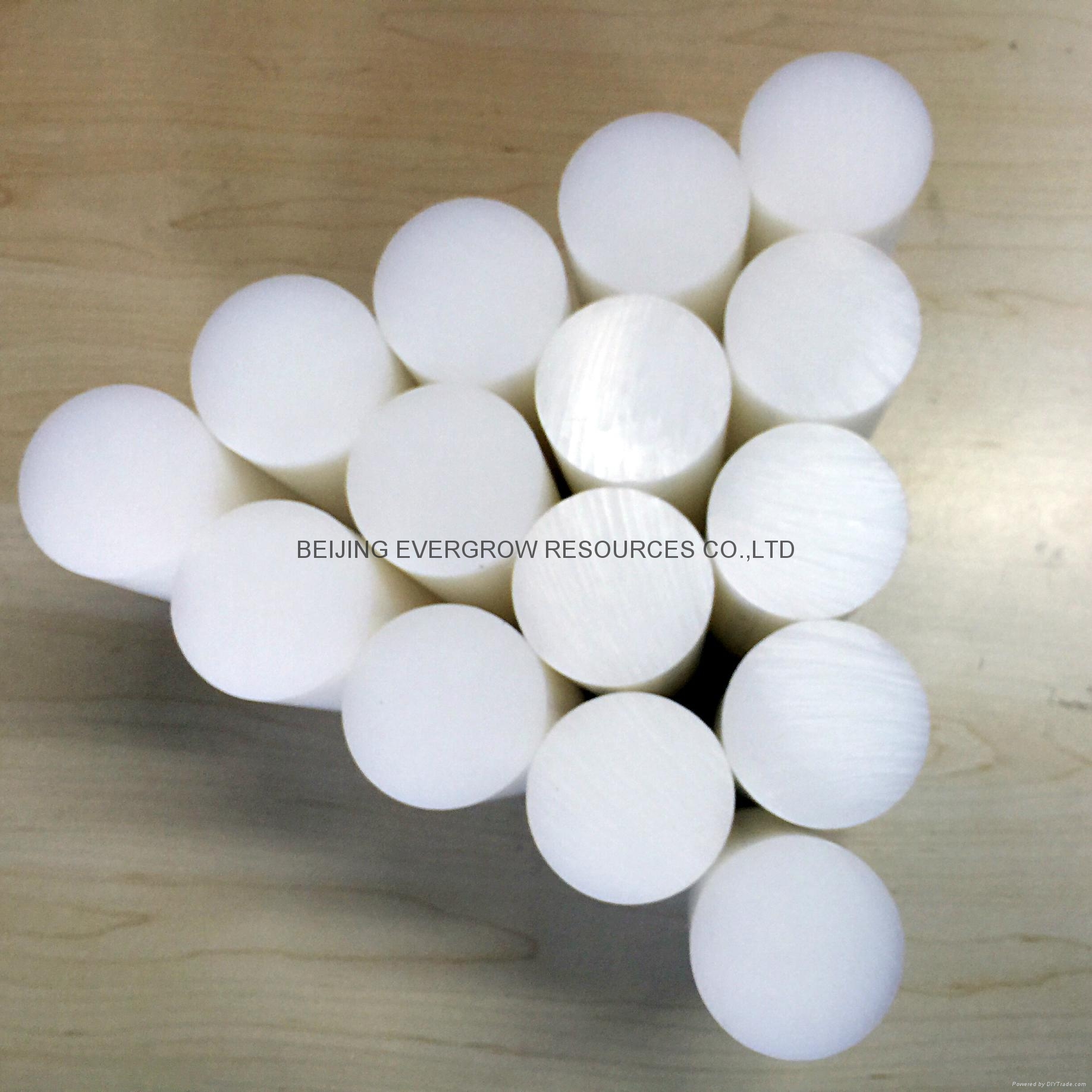

Product Image

UHMW BAR
UHMW BAR
