| Model No.︰ | - |
| Brand Name︰ | - |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|

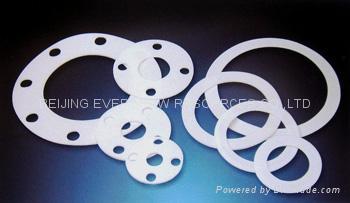

PTFE Gasket ：
PTFE gasket is manufactured by molding method with PTFE granular resin. PTFE compared with other plastics, has a superior properties against chemicals and temperature.
Because of such excellent properties, PTFE has a wide application as a sealing material.
|
|
|
|
| Specifications︰ |
[ Specifications ] No. Type Standard
1
RF 10A Φ53×Φ18×3t
FF 10A Φ90×Φ18×3t
2
RF 15A Φ58×Φ22×3t
FF 15A Φ95×Φ22×3t
3
RF 20A Φ63×Φ28×3t
FF 20A Φ100×Φ28×3t
4
RF 25A Φ74×Φ35×3t
FF 25A Φ125×Φ35×3t
5
RF 32A Φ84×Φ43×3t
FF 32A Φ135×Φ43×3t
6
RF 40A Φ89×Φ49×3t
FF 40A Φ140×Φ49×3t
7
RF 50A Φ104×Φ61×3t
FF 50A Φ155×Φ61×3t
8
RF 65A Φ124×Φ77×3t
FF 65A Φ175×Φ77×3t
9
RF 80A Φ134×Φ90×3t
FF 80A Φ185×Φ90×3t
10
RF 90A Φ144×Φ102×3t
FF 90A Φ195×Φ102×3t
11
RF 100A Φ159×Φ115×3t
FF 100A Φ210×Φ115×3t
12
RF 125A Φ190×Φ141×3t
FF 125A Φ250×Φ141×3t
13
RF 150A Φ220×Φ167×3t
FF 150A Φ280×Φ167×3t
14
RF 200A Φ270×Φ218×3t
FF 175A Φ305×Φ192×3t
15
RF 225A Φ290×Φ244×3t
FF 200A Φ330×Φ218×3t
16
RF 250A Φ333×Φ270×3t
FF 250A Φ400×Φ270×3t
17
RF 300A Φ378×Φ321×3t
FF 300A Φ445×Φ321×3t
18
RF 350A Φ423×Φ359×3t
FF 350A Φ490×Φ359×3t
19
RF 400A Φ486×Φ410×3t
FF 400A Φ560×Φ410×3t
20
RF 450A Φ541×Φ460×3t
FF 450A Φ620×Φ460×3t
21
RF 500A Φ596×Φ513×3t
FF 500A Φ675×Φ513×3t
22
RF 600A Φ700×Φ615×3t
FF 550A Φ745×Φ564×3t
FF 600A Φ795×Φ615×3t
[ Main properties ]
Properties Unit Result
density g/cm3
2.10-2.30
Tensile strength (min) MPa
15.0
Ultimate elongation (min) %
150
[ Applications ]
Sealing material.
|
|
|
|
|
|
|
